Grain bucket elevators
Bucket Elevators — Built In-House for Reliable Grain Handling
From ultra-small 500 BPH units to powerful 16,000 BPH commercial systems — Farm Equipment Plus designs and manufactures bucket elevators that deliver smooth, efficient, and dependable vertical grain movement across the U.S.
Our Bucket Elevator Lineup
Choose the capacity and height that match your operation. Many models are in-stock and ready to ship nationwide.
Compare Bucket Elevator Capacities
At-a-glance view of our models and pricing. Click “View” for detailed specs.
| Model | Price |
|---|---|
| Model 06 Bucket Elevator 500 BPH | $5,800.00 - $9,400.00 |
| Model 10 Low Maintenance Elevator 1800 BPH | $12,485.00 - $21,600.00 |

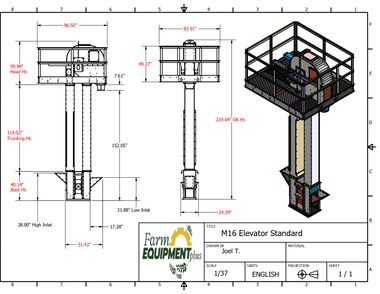

| Model 16 Vertical Conveyor 2800 BPH | $14,100.00 - $27,200.00 |

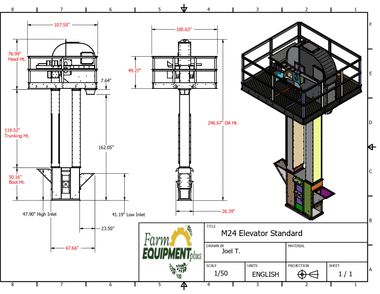

| Model 24 Bucket Elevator 5000 BPH | $25,050.00 - $40,550.00 |

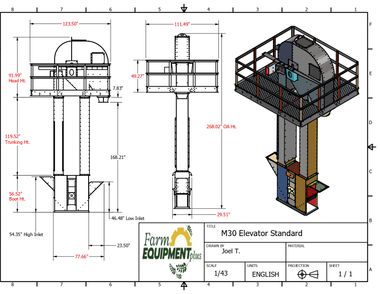

| FEP Galvanized Elevator Model 30 Grain Leg 7200 bph | $28,800.00 - $48,200.00 |

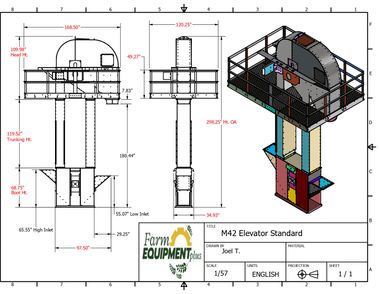

| Model 42 Commercial Bucket Elevator | - |

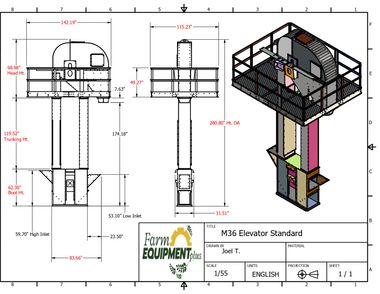

| Model 36 Industrial Bucket Elevator 11,000 BPH | - |
Note: horsepower varies by height and configuration. Contact us for exact specs for your site.
About usWhy Bucket Elevators from Farm Equipment Plus
Manufactured in-house
Consistent quality control and faster lead times
Wide capacity range
From ultra-small 500 BPH to 16,000 BPH commercial systems
Gentle grain handling
Protects grain quality with efficient vertical transfer
Durability & parts
Robust construction with reliable service and parts availability
Nationwide support
We ship and support installations across the U.S.
How a Bucket Elevator Works
A bucket elevator uses a continuous belt or chain fitted with buckets to lift grain vertically. Buckets scoop material from the boot section, carry it upward inside a sealed casing, and discharge at the head through centrifugal or gravity flow depending on the design. Proper bucket spacing, speed, discharge geometry, and alignment ensure high capacity with minimal spillage and grain damage.

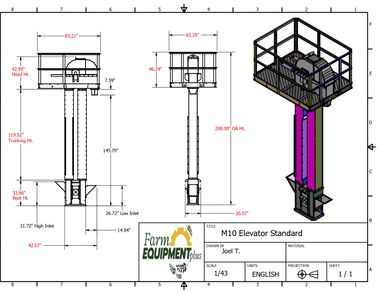

Technical blueprint of the M10 bucket elevator, showing trunking, head section, inlet and discharge geometry.
Key components: boot, casing, buckets, belt/chain, head section with discharge, drive, and safety/inspection access.
Real Farm ResultsFootage from the field: reliability, throughput, and real-world performance.
Footage from the field: reliability, throughput, and real-world performance.
FAQ
Ready to size your Bucket Elevator?
Tell us your target BPH, height, and site details — we’ll configure the right system.
Call Now (605 592 0410)
